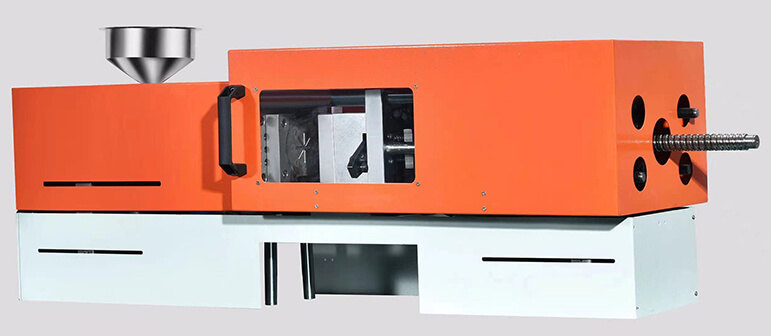

Mini Desktop Injection Molding Machine

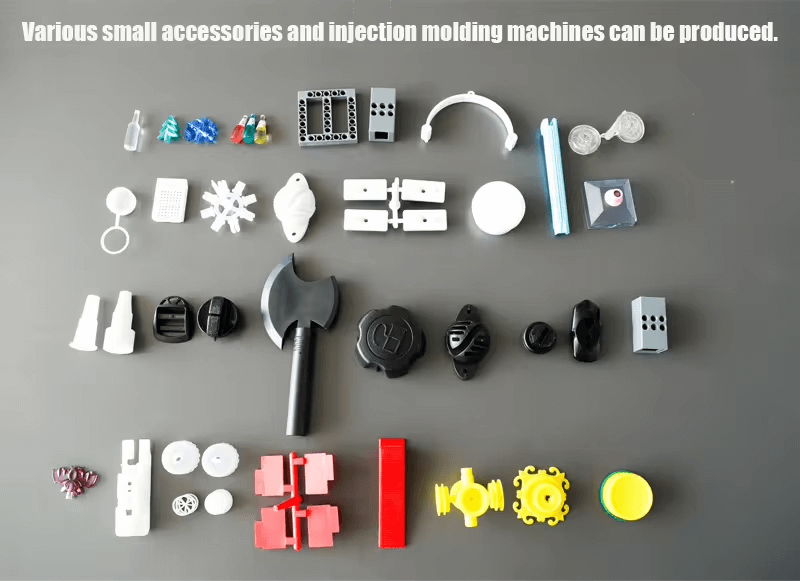

Application:
- Micro precision parts production
- Prototypes of New or Experimental Parts
- Car precise parts production(car button)
- Lab specimens or color card test
- Small toy accessories production
- Wall anchor/ small home furniture injection molding
- Educational colleage trainning program
Specification:
| Model Number | BWMINI-15T | BWMINI-18T |
|---|---|---|
| Clamping force | 15T | 18T |
| Feeding Torque | 60-100NM | 60-100NM |
| Scew Diameter | 18mm | 22mm |
| Opening Stroke | 80mm | 120mm |
| Power | 5.5KW | |
| Power comsumption | 0.8KW | 1KW |
| Max.Heating temperature | 400℃ | |
| Shot weight | 30-40g | 40-50g |
| Nozzle Hole Diameter | 2mm | 3mm |
| Motor Accuracy | 0.002mm | |
| Cooling Type | water | |
| Power source | AC220V | |
| Max Mold size | 200*120*150 | 240*200*190 |
| Language | Chinese,English,Russia etc. | |
| Material | PC,PS,PP,PE,PEI,PMMA,PCC,ABS,POM,TPU | |
| Machine size(L*W*H) | 950*210*350mm | 1500*450*550mm |
| Machine weight(KG) | 200 | 340 |
