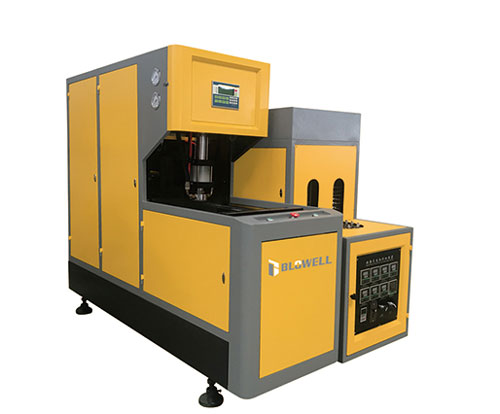

BW-20L
Feature:
- Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second.
- Equipped with special designed air storage unit.
- Using Infrared preform heater.
- Independent Temperature Control for different heating lamp to get ideal preform heating results.
- Heating lamps are adjustable in directions to suit various preforms.
- Operated only by one person without special training.
- Simple installation & startup adjustment.
Specification:
| Items | Unit | BW-20L |
|---|---|---|
| Max.volume | L | 22 |
| Capacity | bph | 60~90 |
| Number of cavities | cavities | 1 |
| Neck diameter | mm | 50-150 |
| Max.diameter | mm | 300 |
| Max.height | mm | 500 |
| Mold thickness | mm | 300-440 |
| Clamping stroke | mm | 350 |
| Rated power | KW | 33 |
| Power Consumption | KW | 10-16 |
| Blower size | mm | 2200*750*1900 |
| Heater size | mm | 2620*750*1600 |
| Weight | Kg | 1950 |
