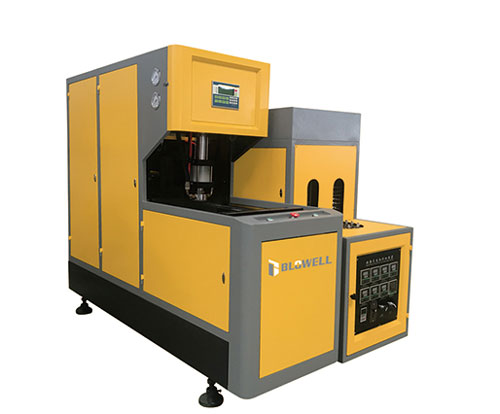

BW-5L
Feature:
- Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second.
- Equipped with special designed air storage unit.
- Using Infrared preform heater.
- Independent Temperature Control for different heating lamp to get ideal preform heating results.
- Heating lamps are adjustable in directions to suit various preforms.
- Operated only by one person without special training.
- Simple installation & startup adjustment.
Specification:
| Items | Unit | BW-5L | BW-10L |
|---|---|---|---|
| Max.volume | L | 6 | 10 |
| Capacity | bph | 300~500 | 300~400 |
| Number of cavities | cavities | 1 | 1 |
| Neck diameter | mm | 28-120 | 28-120 |
| Max.diameter | mm | 180 | 230 |
| Max.height | mm | 380 | 450 |
| Mold thickness | mm | 110-270 | 130-310 |
| Clamping stroke | mm | 210 | 260 |
| Rated power | KW | 14 | 22 |
| Power Consumption | KW | 5-9 | 6-12 |
| Blower size | mm | 1900*650*1750 | 1950*650*1850 |
| Heater size | mm | 1800*700*1400 | 2300*700*1400 |
| Weight | Kg | 1100 | 1400 |
