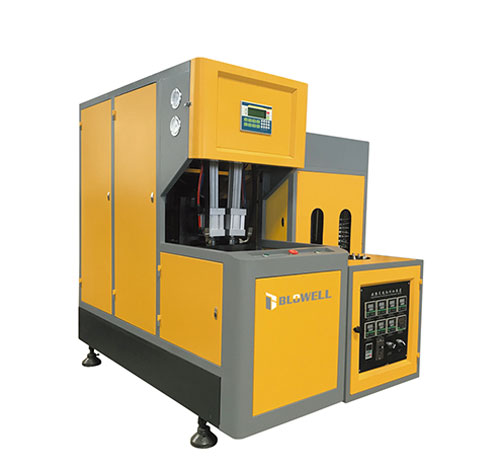

BW-3L
Feature:
- Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second.
- Equipped with special designed air storage unit.
- Using Infrared preform heater.
- Independent Temperature Control for different heating lamp to get ideal preform heating results.
- Heating lamps are adjustable in directions to suit various preforms.
- Operated only by one person without special training.
- Simple installation & startup adjustment.
Specification:
| Items | Unit | BW-3L |
|---|---|---|
| Max.volume | L | 3 |
| Capacity | bph | 600~800 |
| Number of cavities | cavities | 2 |
| Neck diameter | mm | 16-60 |
| Max.diameter | mm | 120 |
| Max.height | mm | 350 |
| Mold thickness | mm | 110-230 |
| Clamping stroke | mm | 160 |
| Rated power | KW | 14 |
| Power Consumption | KW | 3-8 |
| Blower size | mm | 1650*650*1750 |
| Heater size | mm | 1800*700*1500 |
| Weight | Kg | 950 |
