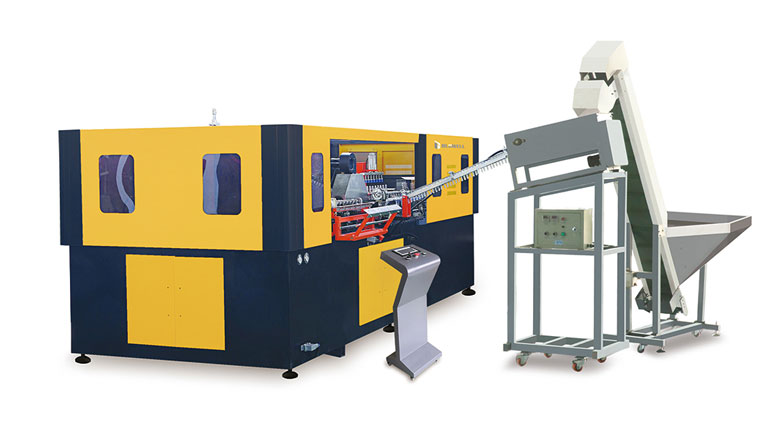

Full automatic blow molding machine(0-2L)
Feature:
- Preform feeding and the transmission motions of preform and bottle delivering are both driven by servo motor. Accurate positioning, stable operation.
- Configure supercharged clamp locking system, minimize bottle’s clamping line.
- Human computer interface, PLC automatic display fault point, maintainess simple.
- Full automatic process ensures high efficient production with low investment.
- Each cavity blowing parameters independently controlled.
- It can make max to nine cavities and the maximum volume of the products is 2.0L.
Specification:
| Items | Unit | BW-A4-0.6L | BW-A6-0.6L | BW-A2-2L | BW-A4-2L | BW-A6-2L |
|---|---|---|---|---|---|---|
| Number of cavities | cavities | 4 | 6 | 2 | 4 | 6 |
| Max.volume | L | 0.6 | 0.6 | 2 | 2 | 2 |
| Neck diameter | mm | 18-38 | 18-38 | 18-38 | 18-38 | 18-38 |
| Max.diameter | mm | 69 | 69 | 105 | 105 | 105 |
| Max.height | mm | 240 | 240 | 330 | 330 | 330 |
| Theoretical output | bph | 5000~4600 | 7000~6500 | 2200~1800 | 4500~4000 | 6000~5000 |
| Rated power | KW | 44 | 72 | 34 | 72 | 98 |
| Power Consumption | KW | 20 | 30 | 20 | 32 | 46 |
| Main machine size | mm | 3300*2000*2200 | 4200*2050*2200 | 3000*1800*2400 | 4200*2100*2400 | 4800*2150*2400 |
| Preform loader size | mm | 1900*1200*2300 | 1900*1200*2300 | 1900*1200*2300 | 2000*1300*2300 | 2000*1300*2300 |
| Main machine weight | Kg | 4200 | 5000 | 4000 | 5000 | 5800 |
