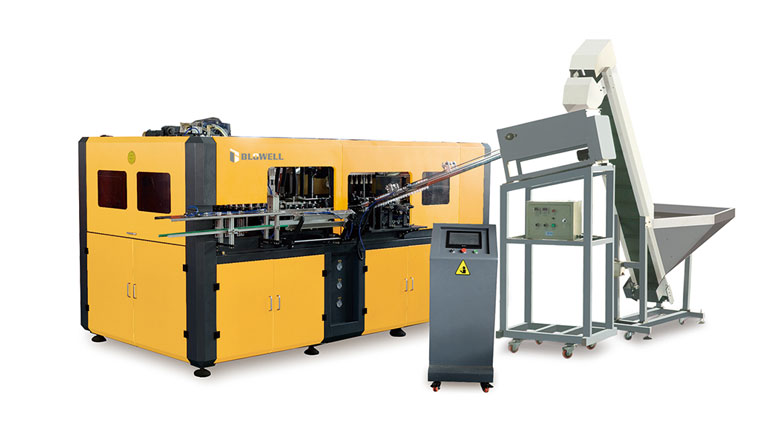

High speed fully electric automatic blow molding machine
Feature:
- Molding mechanism is driven by SERVO motor, which leads whole mechanism works speedy, accurately, stably, flexibly and energy efficient. High speed precision blowing valves help to make high capacity.
- Stepping and stretching system are also driven by SERVO motor.
- Air recycle system is equipped for high pressure air(recycle up to 30% HP air), which save power consumption 30KW/hr. This design minimize requirement to Low Pressure Compressor.
- Mold mounting is by simple slide-in way. It makes as easy for operator to change mold within 30 minutes.
- This series is servo high speed models. The output from 6000bph to 13000bph and volume from 0.15L to 2L.
Specification:
| Items | Unit | BW-E4-0.6L | BW-E6-0.6L | BW-E8-0.6L | BW-E4-2L | BW-E6-2L |
|---|---|---|---|---|---|---|
| Number of cavities | cavities | 4 | 6 | 8 | 4 | 6 |
| Max.volume | L | 0.6 | 0.6 | 0.6 | 2 | 2 |
| Neck diameter | mm | 18-38 | 18-38 | 18-38 | 18-38 | 18-38 |
| Max.diameter | mm | 69 | 69 | 69 | 105 | 105 |
| Max.height | mm | 240 | 240 | 240 | 330 | 330 |
| Theoretical output | bph | 6500~6000 | 9000~8500 | 12000~11000 | 6000~5500 | 7500~7000 |
| Rated power | KW | 48 | 76 | 111 | 78 | 113 |
| Power Consumption | KW | 25 | 35 | 52 | 36 | 53 |
| Main machine size | mm | 3300*1800*2200 | 4200*2050*2200 | 4800*2150*2200 | 4200*2100*2400 | 4800*2150*2400 |
| Preform loader size | mm | 1900*1200*2300 | 1900*1200*2300 | 2000*1300*2300 | 2000*1300*2300 | 2000*1300*2300 |
| Main machine weight | Kg | 4200 | 5000 | 5500 | 5000 | 5800 |
